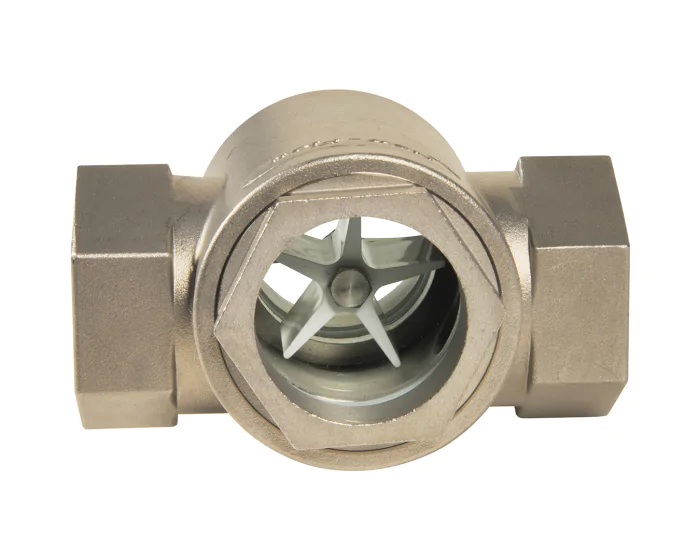

Rotor sight glass controller, stainless steel body CF8M (1.4408), double tempered glass, PS: 10 bar, TS: 70°C, threaded G.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 100.0 |
| Gasket | PTFE |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 10 |
| Connections | BSP FF |
| TS max (°C) | 70 |
| TS min (°C) | -10 |
| Sight glass type | With rotor |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' | 224304 | S1013740 |
€136.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' | 224305 | S1013741 |
€142.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' | 224306 | S1013742 |
€186.74
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 | 224307 | S1013743 |
€198.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 | 224308 | S1013744 |
€315.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' | 224309 | S1013745 |
€325.06
(excl. btw)
|
add to cart |
